Display and mechanical
| Outer dimensions | 39 × 46 × 33 mm |
|---|---|
| Weight | 38 g |
Samkoon Modules

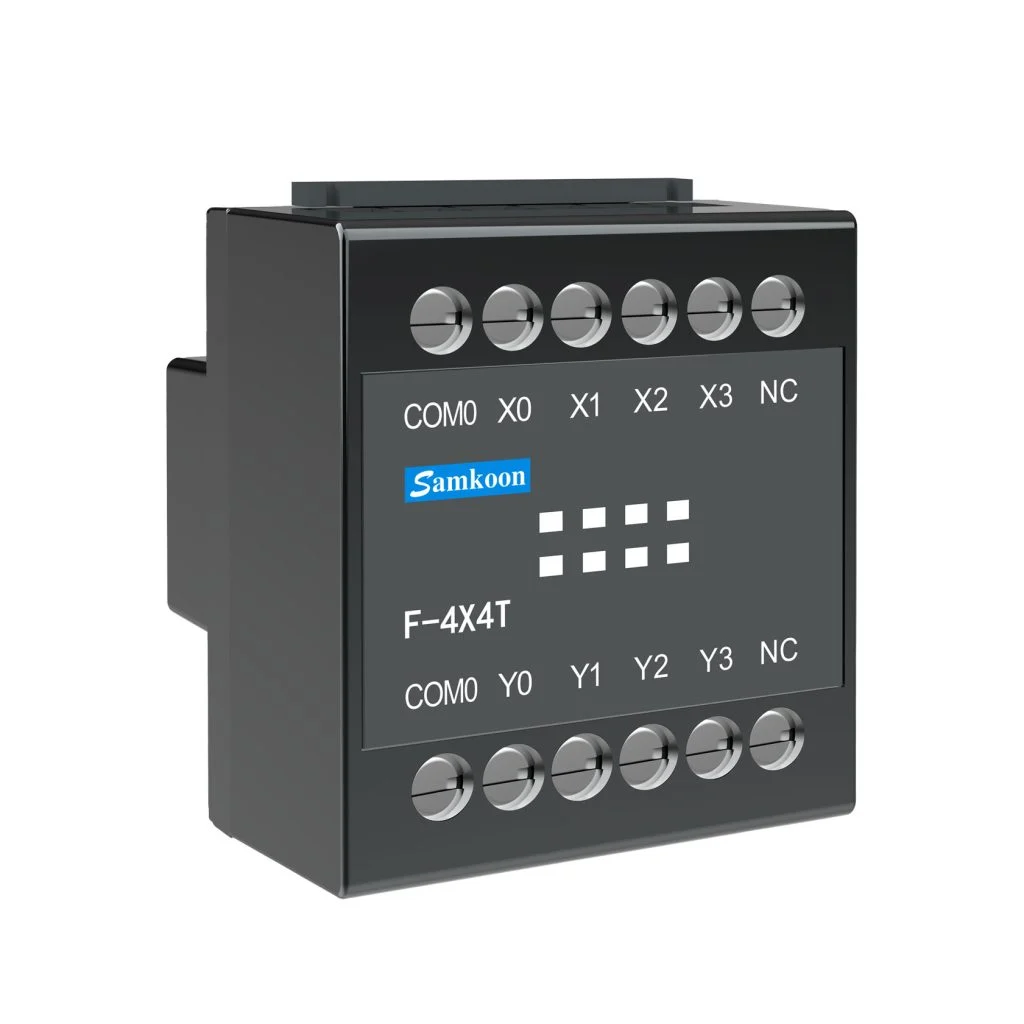

Samkoon F-4X4T
39 × 46 × 33 mm · 4 · 4
The official technical data for Samkoon F-4X4T is grouped below to support compatibility and project selection.
Digital inputs4
Digital outputs4
Outer dimensions39 × 46 × 33 mm
Protection ratingIP30
Operating temperature-20°C–55°C(non-freezing)
Programming softwareSKTOOL7.1
Examine the product from every side
Review the front panel, rear I/O and connector layout before planning the enclosure.
Dimensions and panel cut-out
Use the official drawing together with the nominal catalogue values when planning panel machining and terminal access.
Specifications arranged for engineering review
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
System and certification
| Protection rating | IP30 |
|---|---|
| FCC | compliant: FCC，ClassA |
| CE | EN 55032 and EN 55035 compliant |
I/O and control
| Digital inputs | 4 |
|---|---|
| Digital outputs | 4 |
| Output type | Transistor / NPN |
| High-speed counters | None |
| Pulse outputs | None |
Communication and power
| Input signal voltage | DC 24 V±20% |
|---|
Environment and software
| Operating temperature | -20°C–55°C(non-freezing) |
|---|---|
| Programming software | SKTOOL7.1 |
| Operating humidity | 5–95%RH(non-condensing) |
Nearby models in the same series
Compare published technical values and the complete model code before selection.
Official product records
Current product-centre record — Listed in Samkoon's current .cn product centre.
Technical sources
Official sources checked on 24 August 2026. Samkoon current product centre · Samkoon English product catalogue · Samkoon English product catalogue · Samkoon English product catalogue
