Evaluate remote I/O, IO-Link, industrial networking, AC drives, solar-pump drives and soft starters using official data, explicit differences and migration steps.
A comparison is incomplete until protocol roles, electrical data, environment, mechanics, engineering files and software migration are verified.
Products in the same class may differ in terminals, process data, fault behaviour, certification or software. Final selection requires exact models and project data.
The inventory grows under editorial control: only topics with adequate official sources and a real ProControl technical page are indexed.
Solidot XB6S-PN2002 is not a drop-in replacement for ET 200SP. It is an architecture to evaluate for modular, cabinet-mounted PROFINET remote I/O. The coupler, each I/O module, GSDML and channel electrical data must be validated per project.
Review comparison
Solidot XB6S-EC2002 is not mechanically or software-identical to Beckhoff EK/EL terminals. It is a technical candidate for new or redesignable projects requiring an EtherCAT slave coupler and modular I/O.
Review comparison
Solidot PN7A can be evaluated for machine-mounted PROFINET I/O, but identical connectors, pinout, diagnostics, safety or software behaviour to ET 200eco PN or ET 200AL must not be assumed.
Review comparison
Solidot C2P, C2S, C3 and XB6 are project-based candidates for fieldbus valve terminals, not direct replacements for a VTUX order code. Valve function, flow, pressure, stations, coils, manifold base and dimensioned drawings must be approved together.
Review comparison
Solidot IOL7A-PN01B-8A or IOL7A-EC01B-8A is a technical candidate for an 8-port IO-Link master. Do not assume identical multiprotocol, separate IoT-port, MQTT/JSON or Class-B capabilities to certain ifm AL models.
Review comparison
PN4-GW2MR is a technical candidate for defined roles between PROFINET and Modbus RTU; it does not replace every Anybus Communicator. Master/controller or slave/device roles, process data and serial electrical standard must be confirmed on both sides.
Review comparison

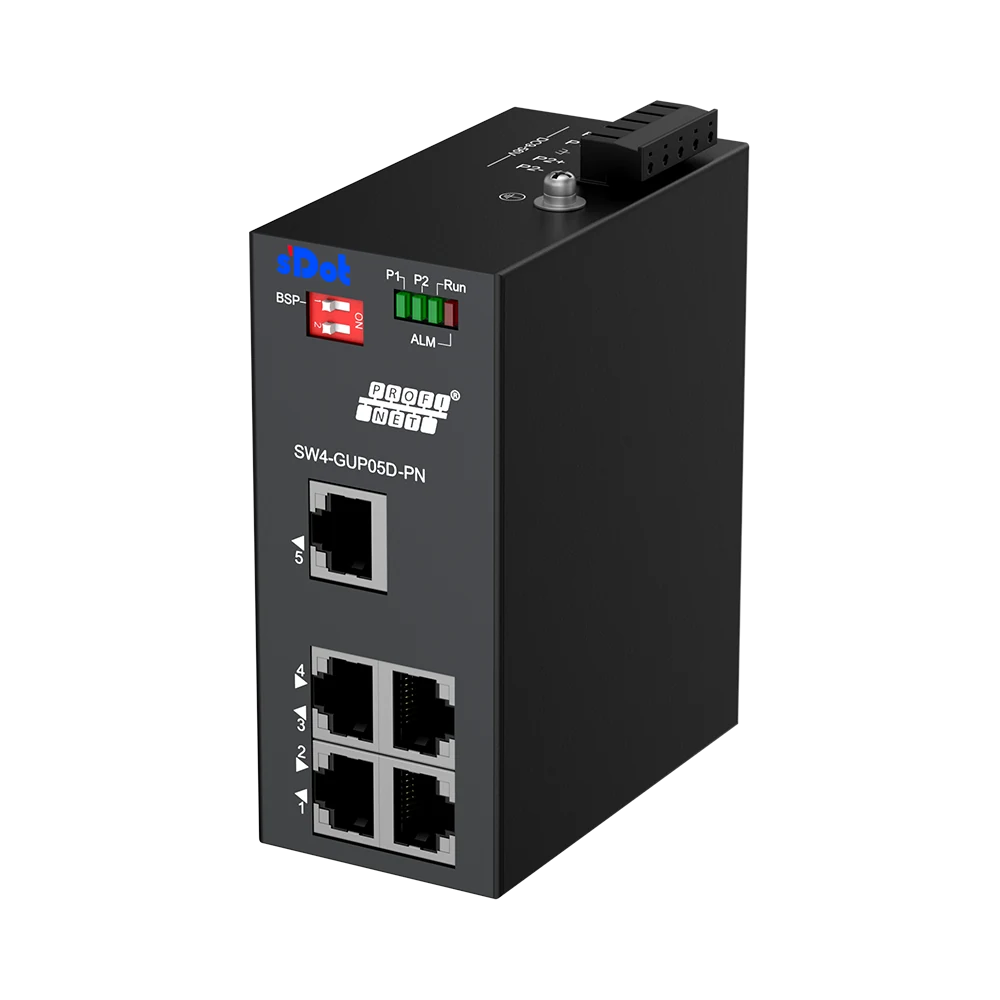

The Solidot SW4 family includes unmanaged, PROFINET-traffic-priority and managed options. MRP/RSTP, PROFINET conformance, SNMP, VLAN, cybersecurity or certifications of a SCALANCE model must not be assumed equal.
Review comparison
Omron NX-TC is a temperature-control unit within the NX I/O system; XBF-A80TC is a separate eight-channel Solidot family with different control outputs. They can address the same need, but channel, bus, cycle, output and software architectures differ.
Review comparison

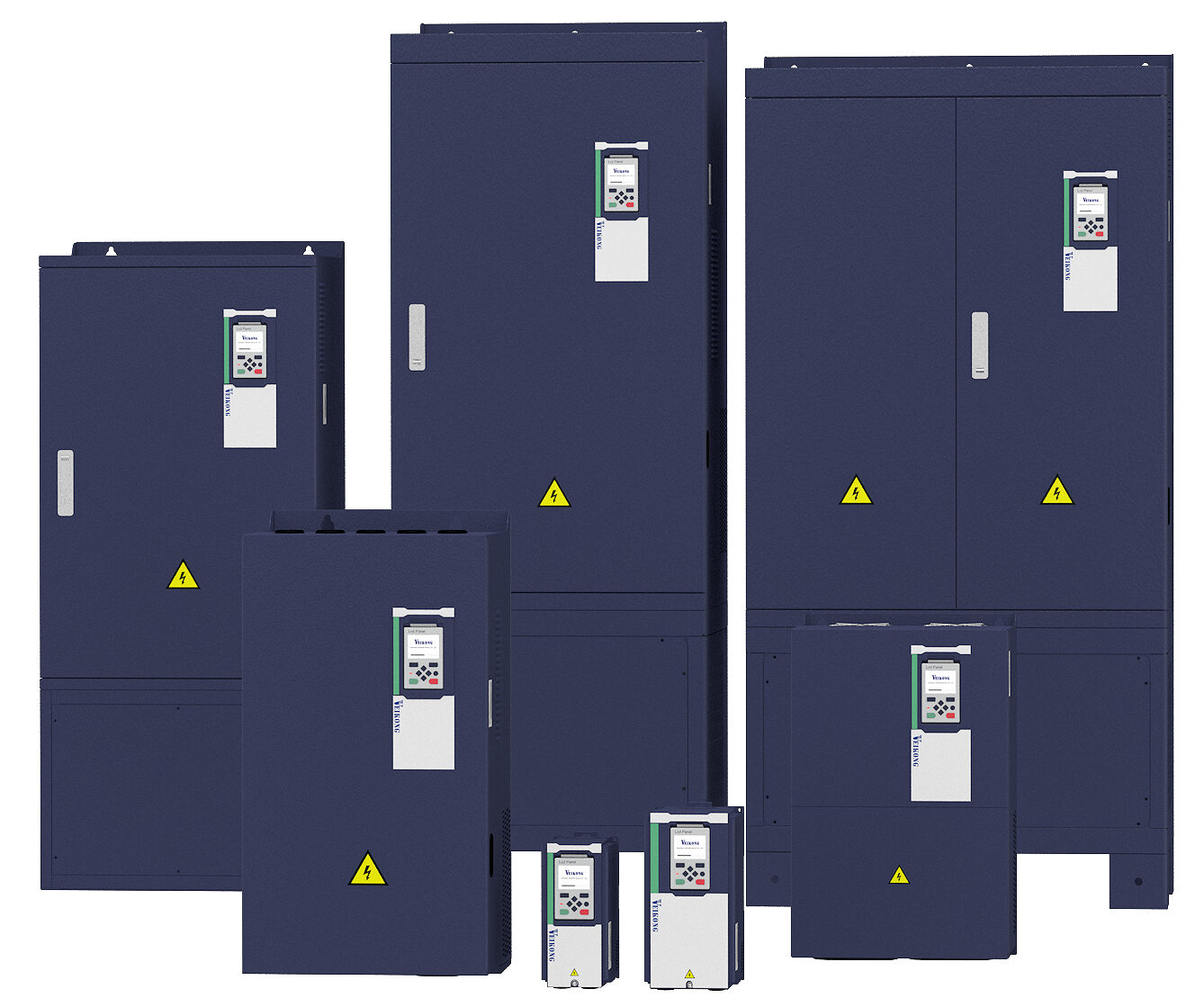

VFD500 is not a part that can replace G120C while retaining its connections. It can be a technical candidate for conveyors, pumps, fans or general machinery when motor nameplate current, HD/ND duty, safety and Siemens-network integration can be re-engineered.
Review comparisonThe entire 0.75–500 kW ACS580 portfolio does not overlap VFD500. Only models sharing voltage, motor current, load type, enclosure and option windows can enter an engineering comparison.
Review comparison

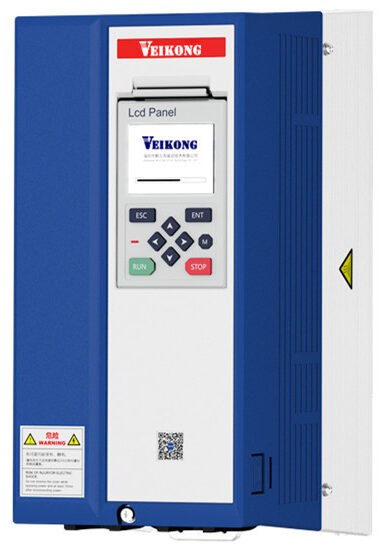

VFD580 can be assessed for high-dynamic speed or torque control, but FC 302's Integrated Motion Controller, safety options and Danfoss fieldbus ecosystem are not considered covered without evidence. Positioning projects are validated axis by axis.
Review comparison

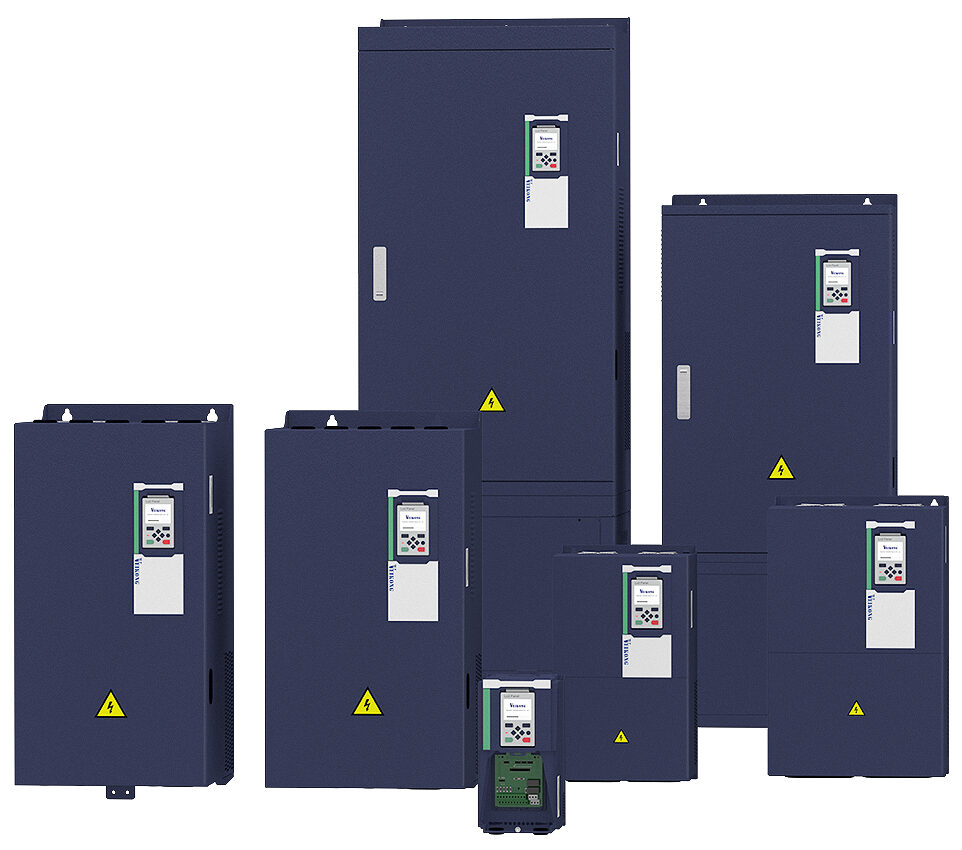

VFD530 can be a candidate in redesignable machines requiring IM/PMSM control and PG feedback. ATV320's certified functions such as STO, SS1 and SLS are not considered transferred to VFD530 merely by name or without an external circuit.
Review comparison
VFD500M is a technical candidate for small motors in space-constrained panels, but MS300's PM motor, STO, PLC and communication options cannot be treated as equal under one 'compact drive' label. The shared supply and current window must be found first.
Review comparisonVFD500M is a candidate against GD20-EU only within its published supply window around 0.4–7.5 kW. Higher-power GD20-EU models, special STO/EMC variants or existing wiring fall outside this comparison.
Review comparisonVFD530 is a candidate for standard IM/PMSM machine axes and PG feedback. FRENIC-Ace E3's high-frequency, customisable logic, synchronous-motor and network options can be compared only through documented testing in the same functional scenario.
Review comparisonVFD580 can be assessed on high-performance induction or synchronous-motor axes. GA700's published SIL3/PL e safety, SynRM scope and option ecosystem do not automatically apply to VFD580; an explicit gap list is mandatory.
Review comparisonVFD500 can be a candidate for standard OEM and general-purpose loads; it must be proven that CFW500 SoftPLC, Pump Genius, PM/encoder or STO/SS1 functions are unused or can be reimplemented. Function names do not establish technical equality.
Review comparisonVFD500 can be a technical candidate for S100 conveyor, pump, fan and general-machine duties. S100 SIL2 STO, C2/C3 EMC, integrated DC reactor or selected fieldbus features are not considered retained until verified on the exact VFD500 model.
Review comparison
Both series belong to the PV water-pumping class; the right candidate is still determined by array Voc/Vmp calculation, pump-motor current, well flow, hybrid grid/generator behaviour and DC protection design. MPPT percentage alone is not a selection criterion.
Review comparison

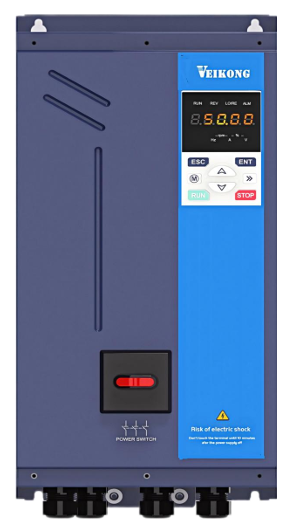

VFD510-PV is a candidate against ACQ80 in IP55 field solar-pump installations only within its published 220 V 2.2–11 kW and 380 V 2.2–45 kW scope. ABB's wider power portfolio and special connectivity features are outside this narrow match.
Review comparison

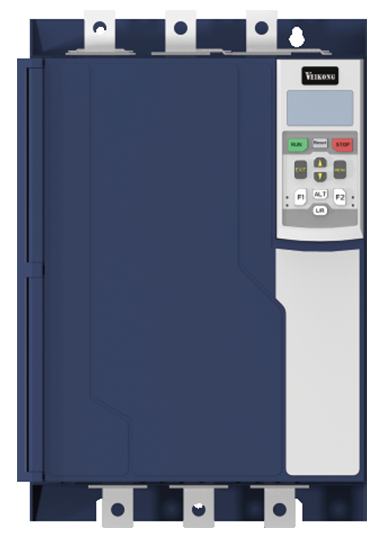

VKS8000 is an advanced start/stop candidate for pumps, fans, compressors or conveyors, but a 3RW55 selection cannot be converted by motor kW alone. Motor FLA, load torque/inertia, starting time and starts per hour are recalculated.
Review comparisonVKS8000 can be a candidate for process motors requiring built-in bypass and advanced start/stop. PSTX's 30–1250 A portfolio, pump functions, fieldbus and protection details cannot be matched at series level until verified individually on VKS8000.
Review comparisonVKS8000 can be assessed for controlled starting/stopping of normal- or heavy-duty process motors. ATS480's 17–1200 A scope, dynamic braking/DC injection, network, multi-motor or cybersecurity functions cannot be attributed to VKS8000 without official Veikong evidence.
Review comparison
Samkoon EA and SK panels can be evaluated for basic machine visualisation when display size and communication requirements can be reselected. The KTP project, TIA Portal objects and Siemens communications configuration do not transfer directly; the panel, PLC driver and acceptance tests require re-engineering.
Review comparison
Samkoon SK models are technical candidates for machines using Delta DOP-100 when display, ports and basic visualisation requirements can be redefined. DOPSoft projects and scripts do not transfer directly; Ethernet, remote access, data logging and the PLC driver are redesigned for the exact model.
Review comparison
Samkoon SK can be evaluated for machine-level local visualisation and standard PLC communications. If the cMT X project uses OPC UA, MQTT, dual networks, cMT Viewer or data integration, matching the screen size is insufficient; every function must be proven on the exact Samkoon model and software.
Review comparison
EA-070B V4 and SK-070QE V3 can be evaluated within the same 7-inch/800×480 selection intent as GL070E; this does not imply physical or software compatibility. Ethernet, serial ports, panel cut-out, brightness and rebuilding the existing project are verified per exact model.
Review comparison
Samkoon SK can be evaluated for local machine-HMI projects based on multi-brand PLC communications. If the GT25 uses Mitsubishi PLC, drive, servo, GT Works3 or dedicated maintenance/diagnostic functions, these are not assumed on Samkoon; the requirement list is revalidated at model and software level.
Review comparisonSamkoon EA and SK models are technical candidates for the Omron NB Series economy machine-HMI use case based on display size and port layout. The NB-Designer project does not transfer directly; TW00/TW01 Ethernet differences, panel cut-out and the Omron device driver are revalidated for the exact model.
Review comparison
Samkoon GT and GX models can be evaluated within the same purchasing intent as UniStream Built-in for compact machines that need a screen, PLC and defined I/O in one enclosure. UniStream expansion, protocols, web/cloud and UniLogic ecosystem are not treated as model-level equivalents; every I/O and software duty is revalidated.
Review comparison
Samkoon FGR can be a technical candidate for compact I/O control, FAs for higher built-in I/O and Ethernet needs, and PRO for pulse/motion-intensive duties. No equivalence is claimed unless S7-1200 G2 PROFINET, fail-safe, motion, OPC UA and TIA integration requirements are met at exact-CPU level.
Review comparison
Samkoon FAs can be evaluated in the same selection pool as DVP-ES3 for higher built-in I/O and Ethernet needs, while FGR targets compact duties. No model is recommended before CPU code, supply, relay/transistor and NPN/PNP polarity, motion frequency, Ethernet and expansion architecture are verified.
Review comparison
Samkoon FAT and FAs can be technical candidates for general machine-I/O control, while PRO targets motion-intensive applications. If Mitsubishi GX Works3, high-speed system bus, CC-Link IE and dedicated motion/device ecosystem must be retained, each function is separately proven in the exact configuration.
Review comparison
Samkoon FAs and FGR models can be evaluated for CP2E compact-machine and data-collection use based on I/O, supply and communication requirements. No single Samkoon model is recommended before CP2E E/S/N type, Ethernet/FINS, program capacity and option-board use are verified.
Review comparisonCompetitor brand names are used only to identify product classes and provide engineering comparisons. These pages do not claim ownership, endorsement or direct compatibility.
Share the exact existing code, I/O list, network and environment so we can identify the right solution without assumptions.
