4.3″ 16:9 · 8 · 8 points
Samkoon GT-043-16MT combines operator interaction, control logic and field I/O in one HMI + PLC platform; verify its exact I/O and communications against the machine architecture.

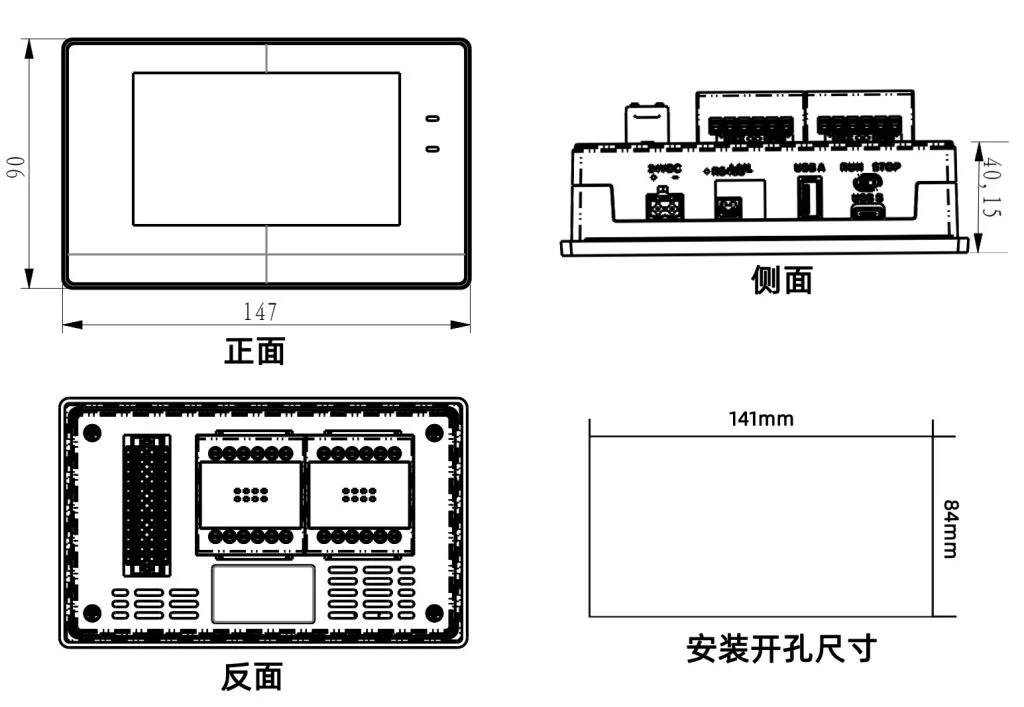

Review the front panel, rear I/O and connector layout before planning the enclosure.
Use the official drawing together with the nominal catalogue values when planning panel machining and terminal access.
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
| Resolution | 480 × 272 |
|---|---|
| Outer dimensions | 147 × 90 × 40 mm |
| Panel cut-out | 141 × 84 mm |
| Contrast ratio | 400:1 |
| Brightness | 450cd/m² |
| Weight | 286 g |
| Touch panel | 4-wire high-precision resistive panel |
| Colour depth | 16.77 million colours |
| Backlight | LED |
| Enclosure material | ABS+PC engineering plastic |
| Display size | 4.3″ 16:9 |
| Processor | Cortex A7 1 GHz, dual-core |
|---|---|
| Memory | 128MB DDR |
| Storage | 128MB Flash |
| Protection rating | IP65 (front panel) |
| ESD resistance | ±6kV |
| FCC | compliant: FCC, Class A |
| CE | EN 55032 and EN 55035 compliant |
| Digital inputs | 8 |
|---|---|
| Transistor outputs | 8 points |
| High-speed counters | Up to 4 channels |
| High-speed pulse outputs | 4 channels, 200KHz |
| I/O expansion | Up to 16 I/O points with plug-ins |
| Temperature expansion | Up to 8 inputs with plug-ins, thermocouple / PT100 |
| Analogue input expansion | Expandable to 8 channels |
| Analogue output expansion | Expandable to 8 channels |
| Power supply | DC 24 V±15% |
|---|---|
| Network module | None |
| USB download port | Yes |
| USB host port | Yes |
| PLC communication port | None |
| Ethernet | None |
| Operating temperature | -20°C–55°C(non-freezing) |
|---|---|
| Programming software | SKTOOL7.1 |
| Operating humidity | 5–95%RH(non-condensing) |
| Vibration resistance | 10–25Hz, XYZ direction, 2G for 30 min |
Links open the current files published by Samkoon; confirm language and revision before commissioning.
Compare published technical values and the complete model code before selection.
Current product-centre record — Listed in Samkoon's current .cn product centre.
Official sources checked on 24 August 2026. Samkoon current product centre · Samkoon English product catalogue
