Operator interface
Display: 7″ (16:9) · Resolution: 1024 × 600
Samkoon HMI + PLC
Samkoon GT-070-23MR-1TC1AI
Display: 7″ (16:9) · Digital inputs: 16 channels · Output: 7 relay outputs
Samkoon GT-070-23MR-1TC1AI combines operator interaction, control logic and field I/O in the GT options combining HMI, PLC and I/O functions in one enclosure range. The onboard functions and expansion needs are separated below for practical machine design.
Display size7″ (16:9)
Resolution1024 × 600
Digital inputs16 channels
Digital outputs7 relay outputs
EthernetYes
Four points that define this configuration
Each point is tied to published model data or an explicit engineering verification step.
Onboard field I/O
Digital inputs: 16 channels
Fast and analogue functions
Temperature: 1 channel K/T thermocouple
Connectivity and expansion
Ethernet: Yes
System architecture
Separate the interface, main I/O and expansion
This prevents optional functions from being mistaken for hardware fitted to the main unit.
Operator interfaceDisplay: 7″ (16:9) · Resolution: 1024 × 600
Main control unitDigital inputs: 16 channels
Expansion and communicationsEthernet: Yes

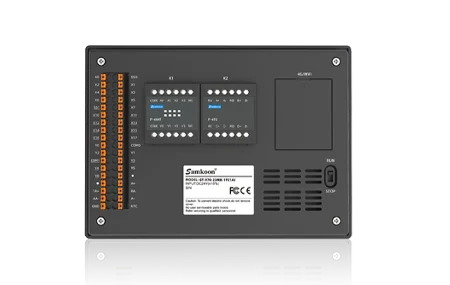

Examine the product from every side
Review the front panel, rear I/O and connector layout before planning the enclosure.
Dimensions and mounting reference
Use the official drawing to plan enclosure space, mounting orientation and service access.
Specifications arranged for engineering review
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
Display and mechanical
| Resolution | 1024 × 600 |
|---|---|
| Outer dimensions | 204 × 148 × 45 mm |
| Contrast ratio | 400:1 |
| Brightness | 450cd/m² |
| Touch panel | 4-wire high-precision resistive panel |
| Colour depth | 16.77 million colours |
| Backlight | LED |
| Display size | 7″ (16:9) |
| Weight | 756 g |
| Enclosure material | ABS + PC Engineering Plastic |
System and certification
| Processor | Cortex A7 1 GHz, dual-core |
|---|---|
| Memory | 128 MB DDR |
| Storage | 128 MB Flash |
| Protection rating | IP65 (front panel) |
| ESD resistance | ±6 kV |
| FCC | FCC Class A compliant |
| Dielectric withstand | 1000 V AC, 1 minute |
| CE | EN55032 / EN55035 |
I/O and control
| Digital inputs | 16 channels |
|---|---|
| Digital outputs | 7 relay outputs |
| Temperature input | 1 channel K/T thermocouple |
Communication and power
| Power supply | DC 24 V ±15% |
|---|---|
| Network module | None |
| USB download port | Yes |
| USB host port | Yes |
| PLC communication port | None |
| Ethernet | Yes |
| Ethernet communication | Supported |
| Dedicated PLC communication port | None |
| HMI communication port | RS485 ×1 |
Environment and software
| Programming software | SKTOOL7.1 |
|---|---|
| Operating temperature | -20 °C – 55 °C (No freezing) |
| Operating humidity | 5–95% RH (Non-condensing) |
| Vibration resistance | 10–25 Hz (XYZ direction, 2 G / 30 min) |
Where this configuration can be evaluated
These are engineering fit scenarios; final approval depends on project-specific electrical, mechanical and safety checks.
Compact machine control
Projects that benefit from combining operator interface, logic and field I/O after the channel structure is verified.
OEM operator panels
Machine panels designed around one coordinated HMI + PLC engineering workflow.
Counting and positioning tasks
Applications whose counter or pulse requirements remain inside the published limits of the exact variant.
Expandable control stations
Panels whose future digital, analogue or temperature expansion is planned before commissioning.
Software, manuals and certificates
Links open the current files published by Samkoon; confirm language and revision before commissioning.
PDF
GT Series selection guideModel and I/O selection · Chinese
PDFGT Series user manualInstallation and commissioning · Chinese
RARSKTOOL V7.1 programming softwareOfficial Samkoon software package
3DGT Series 3D model packageFor enclosure and machine layout
FCCGT FCC SDoC documentCompliance document · PDF
ULGT Series UL certificateCertificate · PDF
CEGT Series CE certificateCompliance document · PDF
Compare nearby configurations with named technical fields
Only published values are compared; a dash means that the current source does not state the field.
| Model | Display | Digital inputs | Output structure |
|---|---|---|---|
| GT-070-23MR-1TC1AICurrent model | 7″ (16:9) | 16 channels | 7 relay outputs |
| GT-070-26MR-1TC1AI | 7″ 16:9 | 16 points | 10 channels |
| GT-070-26MR-1TC1AI-G | 7″ 16:9 | 16 points | 10 channels |
Answers needed before model approval
Answers use published values where available and identify the checks that still require the current official record.
What I/O is onboard?
Digital inputs: 16 channels
Which high-speed or analogue functions are stated?
Temperature: 1 channel K/T thermocouple
Can the unit be expanded?
Confirm expansion against the main unit, plug-in module and hardware revision.
Which software and communications are used?
Software: SKTOOL7.1 · Ethernet: Yes
Official product records
Current product-centre record — Listed in Samkoon's current .cn product centre.
Technical sources
Official sources checked on 24 August 2026. Samkoon current product centre · Exact-model English product record
Confirm the right Samkoon configuration
Share the application, I/O, communication and mounting requirements with our engineering team.
