4.3″, 16:9 · 12 channels · 12 channels
Samkoon GX-043-24MT combines operator interaction, control logic and field I/O in one HMI + PLC platform; verify its exact I/O and communications against the machine architecture.

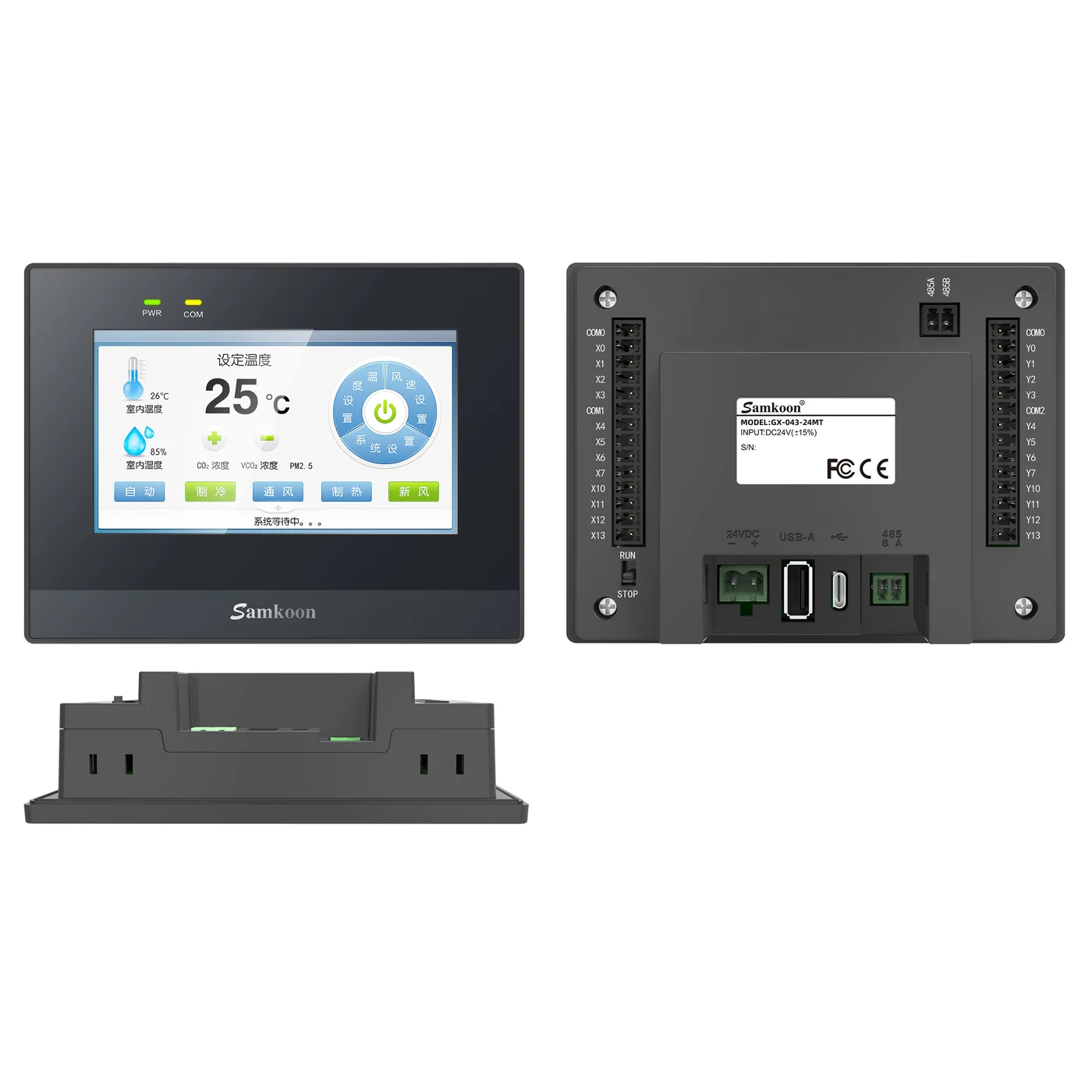

Review the front panel, rear I/O and connector layout before planning the enclosure.

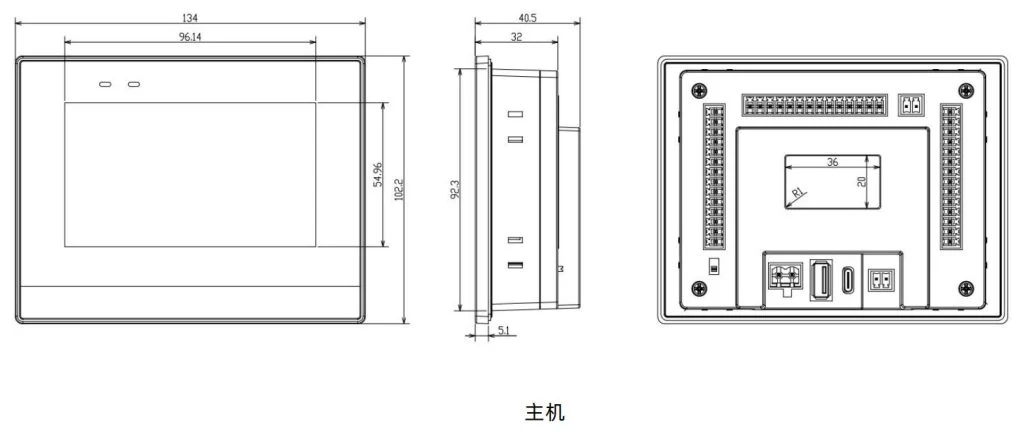

Use the official drawing together with the nominal catalogue values when planning panel machining and terminal access.
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
| Display size | 4.3″, 16:9 |
|---|---|
| Resolution | 480 × 272 pixels |
| Outer dimensions | 134 × 102 × 40 mm |
| Panel cut-out | 120 × 94 mm |
| Enclosure material | Engineering plastic ABS + PC |
| Touch panel | 4-wire high-precision touch panel |
| Colour depth | 16.77 million colors |
| Backlight | LED |
| Contrast ratio | 400:1 |
| Brightness | 450 cd/m² |
| Processor | Cortex A7 1 GHz, dual-core |
|---|---|
| Memory | 128 MB DDR |
| Protection rating | IP65 front panel |
| Dielectric withstand | 1000 V AC, 1 minute |
| ESD resistance | ±6 kV |
| FCC | FCC Class A |
| CE | EN55032 and EN55035 |
| Digital inputs | 12 channels |
|---|---|
| Digital outputs | 12 channels |
| Digital I/O | 12 In / 12 Out |
| Analogue inputs | None |
| Analogue outputs | None |
| Total I/O | 24 |
| Power supply | DC 24 V ±15% |
|---|---|
| Power consumption | 5 W |
| Ethernet | None |
| USB download port | Available |
| USB host port | Available |
| Operating temperature | -20°C to 55°C, no freezing |
|---|---|
| Programming software | SKTOOL 7.1 |
| Operating humidity | 5–95% RH, non-condensing |
| Vibration resistance | 10–25 Hz, 2G in X/Y/Z directions for 30 minutes |
Compare published technical values and the complete model code before selection.
