10.4″ (16:9) · 1024 × 768 · 32-bit Cortex-A8 600MHz

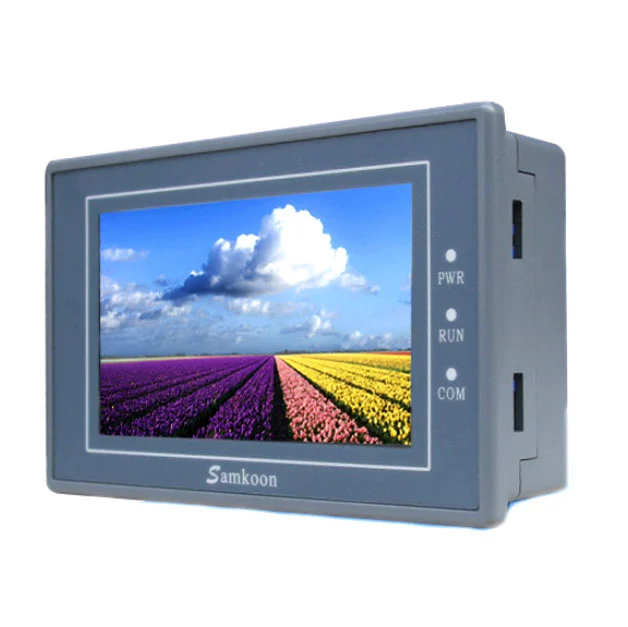

Samkoon SA-104F is an industrial operator panel whose display, processing and communication details are organised below for practical machine integration.
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
| Display size | 10.4″ (16:9) |
|---|---|
| Resolution | 1024 × 768 |
| Outer dimensions | 312 × 225 × 55 |
| Panel cut-out | 285 × 212 |
| Weight | 2.0Kg |
| Touch panel | Four-wire screen |
| Backlight | LED |
| Contrast ratio | 450:1 |
| Brightness | 500cd/m² |
| Enclosure material | ABS + PC |
| Processor | 32-bit Cortex-A8 600MHz |
|---|---|
| Memory | 128M FLASH + 128M DDR2 |
| Protection rating | IP65 (Front panel) |
| Dielectric withstand | 500V DC, 1min |
| FCC | FCC, Class A |
| CE | EN55022 & EN55024 |
| Power supply | DC24V (+/-15%) |
|---|---|
| Power consumption | 6W |
| Ethernet | No |
| USB-A | Yes |
| USB-B | No |
| Operating temperature | -20 – 65℃ |
|---|---|
| Programming software | SATOOL |
| Operating humidity | 10 – 90%RH |
Compare published technical values and the complete model code before selection.
Official English catalogue record — Published by Samkoon's official English catalogue; confirm lifecycle and availability with ProControl before final selection.
Official sources checked on 24 August 2026. Samkoon English product catalogue
