Display and mechanical
| Outer dimensions | 86 × 97 × 81 mm |
|---|---|
| Weight | 465 g |
Samkoon PLC
Samkoon FAS-20MT-AC
12 · 8
Samkoon FAS-20MT-AC is a PLC platform for machine-control projects; its I/O, high-speed functions, communications and expansion data are grouped for engineering selection.
Digital inputs12
Digital outputs8
Programming softwareSamSoarII
Outer dimensions86 × 97 × 81 mm
Power supplyAC 100 V – 240 V
Power consumption2.6 W

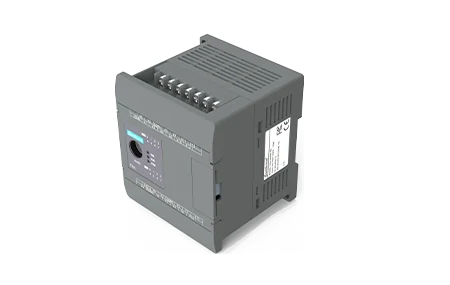

Examine the product from every side
Review the front panel, rear I/O and connector layout before planning the enclosure.
Dimensions and panel cut-out
Use the official drawing together with the nominal catalogue values when planning panel machining and terminal access.
Specifications arranged for engineering review
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
System and certification
| Protection rating | IP30 |
|---|---|
| FCC | FCC Class A compliant |
| CE | EN 55032 and EN 55035 compliant |
I/O and control
| Digital inputs | 12 |
|---|---|
| Digital outputs | 8 |
| High-speed counter | 2 channelseach max. 200 KHz |
| Pulse output | 2 channelseach max. 200 KHz |
| AB-phase counter | 1 channelsmax. 200 KHz |
| Output type | Transistor / NPN |
Communication and power
| Power supply | AC 100 V – 240 V |
|---|---|
| Power consumption | 2.6 W |
| Input signal voltage | DC 24 V±20% |
| Output voltage | 12–30VDC |
Environment and software
| Operating temperature | 0°C–55°C(non-freezing) |
|---|---|
| Programming software | SamSoarII |
| Operating humidity | 5–95%RH(non-condensing) |
Nearby models in the same series
Compare published technical values and the complete model code before selection.
