Display and mechanical
| Outer dimensions | 124.8 × 97 × 81 mm |
|---|---|
| Weight | 525 g |
Samkoon PLC
Samkoon FAS-40MT-AC
22 · 8
Samkoon FAS-40MT-AC is a PLC platform for machine-control projects; its I/O, high-speed functions, communications and expansion data are grouped for engineering selection.
Digital inputs22
Digital outputs8
Programming softwareSamSoarII
Outer dimensions124.8 × 97 × 81 mm
Power supplyAC 100 V – 240 V
Power consumption4.2 W

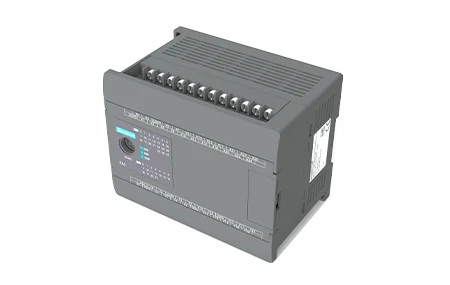

Examine the product from every side
Review the front panel, rear I/O and connector layout before planning the enclosure.
Dimensions and panel cut-out
Use the official drawing together with the nominal catalogue values when planning panel machining and terminal access.
Specifications arranged for engineering review
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
System and certification
| Protection rating | IP30 |
|---|---|
| FCC | FCC Class A compliant |
| CE | EN 55032 and EN 55035 compliant |
I/O and control
| Digital inputs | 22 |
|---|---|
| Digital outputs | 8 |
| High-speed counter | 2 channelseach max. 200 KHz |
| Pulse output | 2 channelseach max. 200 KHz |
| Output type | Transistor / NPN |
| AB-phase counter | 1 channelsmax. 200 KHz |
| Compatible expansion module | S-8 × 8T-M、S-8 × 8T、S-16T-M、S-16T、S-E16T、S-E16T-C、S-E16X-C、S-E8 × 8T、S-E8 × 8T-C、S-E8 × 8R、S-E12R、S-E4TC4T、S-E4PT4T、S-E4AI4T、S-E4AI2AO、S-E4AO |
| Compatible expansion card | F-4 × 4T、F-8X、F-8T、F-4R、F-4TC、F-4PT、F-4PT-1、F-4AI、F-2AI1AO、F-2AO |
Communication and power
| Power supply | AC 100 V – 240 V |
|---|---|
| Power consumption | 4.2 W |
| Output voltage | 12–30VDC |
| Input signal voltage | DC 24 V±20% |
Environment and software
| Operating temperature | 0°C–55°C(non-freezing) |
|---|---|
| Programming software | SamSoarII |
| Operating humidity | 5–95%RH(non-condensing) |
Nearby models in the same series
Compare published technical values and the complete model code before selection.
