Display and mechanical
| Outer dimensions | 25.2 × 92 × 63.4 mm |
|---|---|
| Weight | 102 g |
Samkoon PLC
Samkoon FGRB-C8X6R
8 · 6
Samkoon FGRB-C8X6R is a PLC platform for machine-control projects; its I/O, high-speed functions, communications and expansion data are grouped for engineering selection.
Digital inputs8
Digital outputs6
High-speed counters2 Channels High-Speed Counting + AB Phase Counting
Programming softwareSamSoarII
Examine the product from every side
Review the front panel, rear I/O and connector layout before planning the enclosure.

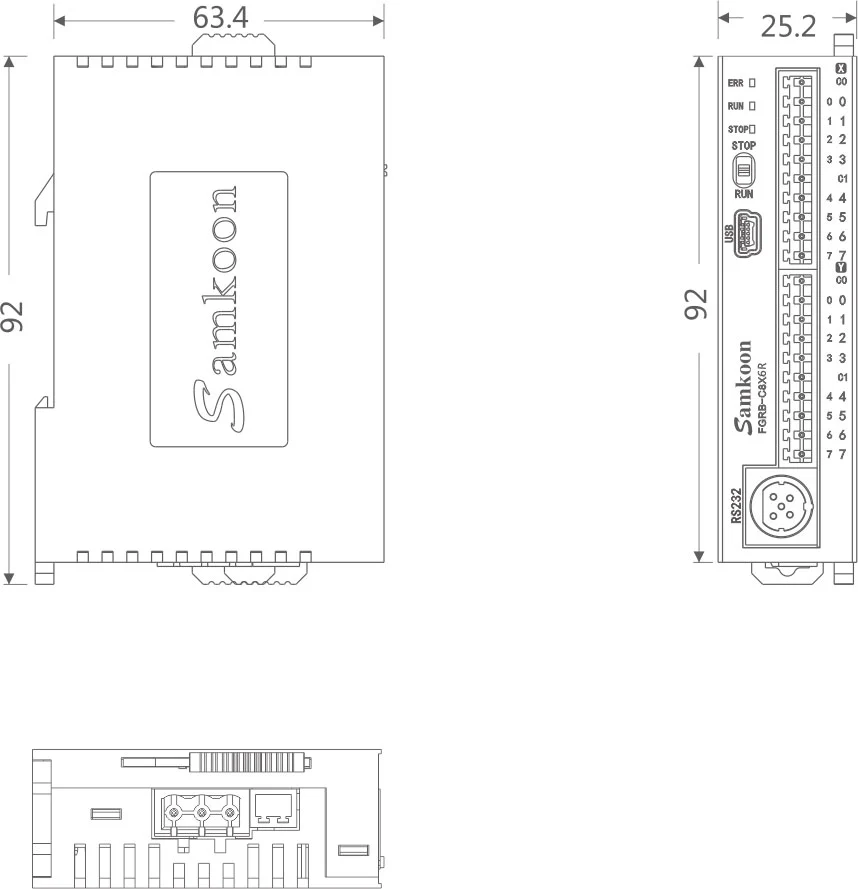

Dimensions and panel cut-out
Use the official drawing together with the nominal catalogue values when planning panel machining and terminal access.
Specifications arranged for engineering review
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
System and certification
| Protection rating | IP30 |
|---|---|
| FCC | FCC Class A compliant |
| CE | EN 55032 and EN 55035 compliant |
I/O and control
| Digital inputs | 8 |
|---|---|
| Digital outputs | 6 |
| High-speed counter | None |
| Pulse output | No |
| Output type | Relay |
| AB-phase counter | None |
| High-speed counters | 2 Channels High-Speed Counting + AB Phase Counting |
Communication and power
| Power supply | DC 24 V±20% |
|---|---|
| Power consumption | 1.5 W |
| Output voltage | <250VAC，30VDC |
| Input signal voltage | DC 24 V±20% |
Environment and software
| Operating temperature | 0°C–55°C(non-freezing) |
|---|---|
| Programming software | SamSoarII |
| Operating humidity | 5–95%RH(non-condensing) |
Nearby models in the same series
Compare published technical values and the complete model code before selection.
Official product records
Current product-centre record — Listed in Samkoon's current .cn product centre.
Technical sources
Official sources checked on 24 August 2026. Samkoon current product centre · Samkoon English product catalogue
