Samkoon PLC
Samkoon FGRS-C8X8T-4/4
Digital inputs: 8 Channels, Sink / Source compatible · Output: 8 Channels Transistor / NPN
Samkoon FGRS-C8X8T-4/4 is part of the a series combining primary control and FGR expansion options portfolio. Its control core, field I/O, high-speed functions and communications are organised as an engineering architecture rather than a flat data list.
Digital inputs8 Channels, Sink / Source compatible
Digital outputs8 Channels Transistor / NPN
High-speed counters4 channels; each up to 200 kHz
Outer dimensions25.2 × 92 × 63.4 mm
Power supplyDC 24 V ±20%
Power consumption1.5 W
Four points that define this configuration
Each point is tied to published model data or an explicit engineering verification step.
Local field I/O
Digital inputs: 8 Channels, Sink / Source compatible
High-speed and motion functions
High-speed counter: 4 channels; each up to 200 kHz · Pulse output: 4 channels; each up to 200 kHz
Network and expansion
Expansion: 3 expansion modules + 1 I/O expansion
System architecture
Read the PLC as a three-layer control system
Evaluate processing, local I/O and motion/network functions together before final model approval.
Controller coreProgram, scan and commissioning layer
Local I/ODigital inputs: 8 Channels, Sink / Source compatible
Motion, network and expansionCounter: 4 channels; each up to 200 kHz · Pulse: 4 channels; each up to 200 kHz · Expansion: 3 expansion modules + 1 I/O expansion

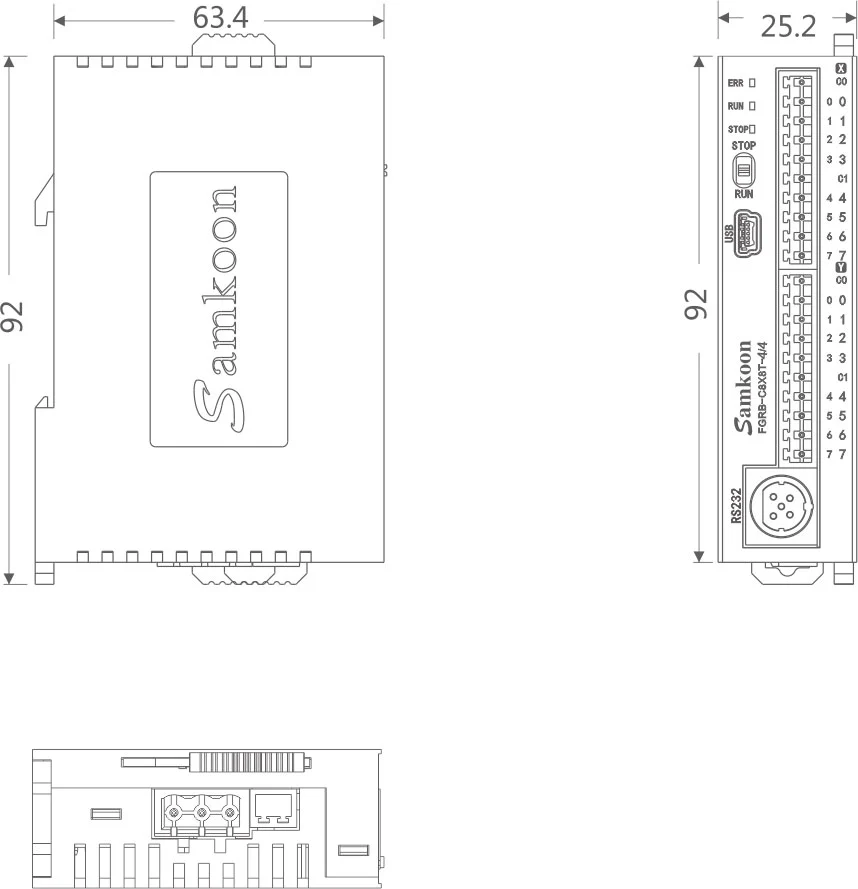

Dimensions and mounting reference
Use the official drawing to plan enclosure space, mounting orientation and service access.
Specifications arranged for engineering review
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
Mechanical construction
| Outer dimensions | 25.2 × 92 × 63.4 mm |
|---|---|
| Weight | 102 g |
I/O and control
| Digital inputs | 8 Channels, Sink / Source compatible |
|---|---|
| Digital outputs | 8 Channels Transistor / NPN |
| High-speed counters | 4 channels; each up to 200 kHz |
| Pulse outputs | 4 channels; each up to 200 kHz |
| Expansion capability | 3 expansion modules + 1 I/O expansion |
Communication and power
| Power supply | DC 24 V ±20% |
|---|---|
| Power consumption | 1.5 W |
Environment and software
| Operating temperature | 0 °C – 55 °C (No freezing) |
|---|
Where this configuration can be evaluated
These are engineering fit scenarios; final approval depends on project-specific electrical, mechanical and safety checks.
Machine sequence control
Discrete-control projects whose program and I/O requirements fit the selected CPU and channel structure.
Fast counting and pulse tasks
Applications validated against the exact model's published counter and pulse limits.
Networked automation cells
Controller architectures whose Ethernet, serial, CAN or EtherCAT needs match the available interfaces.
Expandable OEM panels
Panels in which local and future expansion I/O are planned as one bill of materials.
Official product and catalogue records
Use these manufacturer records to confirm model identity, lifecycle and the current document revision.
Compare nearby configurations with named technical fields
Only published values are compared; a dash means that the current source does not state the field.
| Model | Digital inputs | Output structure | High-speed counter |
|---|---|---|---|
| FGRS-C8X8T-4/4Current model | 8 Channels, Sink / Source compatible | 8 Channels Transistor / NPN | 4 channels; each up to 200 kHz |
| FGRB-C8X8T-2/2 | 8 channels | 8 channels | 2 channels; each up to 200 kHz |
| A-E16T | — | 16 | — |
Answers needed before model approval
Answers use published values where available and identify the checks that still require the current official record.
What is the local I/O structure?
Digital inputs: 8 Channels, Sink / Source compatible
Which high-speed functions are published?
Counter: 4 channels; each up to 200 kHz · Pulse: 4 channels; each up to 200 kHz
Which networks are available?
Confirm network interfaces by the complete model suffix.
Which programming software is used?
Confirm the software version against the current controller record.
