Display and mechanical
| Outer dimensions | 194 × 97 × 81 mm |
|---|---|
| Weight | 825 g |
Samkoon PLC
Samkoon HAs-64MT-AC
32 · 32
Samkoon HAs-64MT-AC is a PLC platform for machine-control projects; its I/O, high-speed functions, communications and expansion data are grouped for engineering selection.
Digital inputs32
Digital outputs32
EthernetYes
Programming softwareSamSoar2022

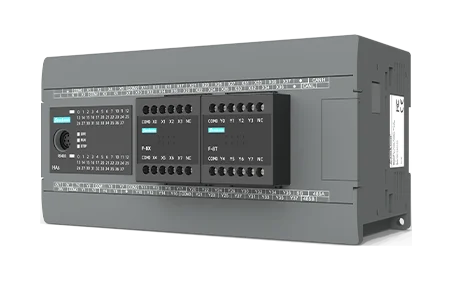

Examine the product from every side
Review the front panel, rear I/O and connector layout before planning the enclosure.
Specifications arranged for engineering review
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
System and certification
| Protection rating | IP30 |
|---|---|
| FCC | compliant: FCC, Class A |
| CE | EN 55032 and EN 55035 compliant |
I/O and control
| Digital inputs | 32 |
|---|---|
| Digital outputs | 32 |
| Pulse output | 8 channelseach max. 200 KHz |
| Output type | Transistor / NPN |
| Front expansion slot | 2 |
Communication and power
| Power supply | AC 100 V – 240 V |
|---|---|
| Ethernet | Yes |
| CAN | Yes |
| Input signal voltage | DC 24 V±20% |
| Output voltage | 24 V |
Environment and software
| Operating temperature | -20°C–55°C(non-freezing) |
|---|---|
| Programming software | SamSoar2022 |
| Operating humidity | 5–95%RH(non-condensing) |
Other technical details
| RS485 | 2 |
|---|
Nearby models in the same series
Compare published technical values and the complete model code before selection.
Official product records
Current product-centre record — Listed in Samkoon's current .cn product centre.
