Module function
Digital inputs: None · Digital outputs: None · Analogue inputs: 2 · Analogue outputs: 1
Samkoon Modules

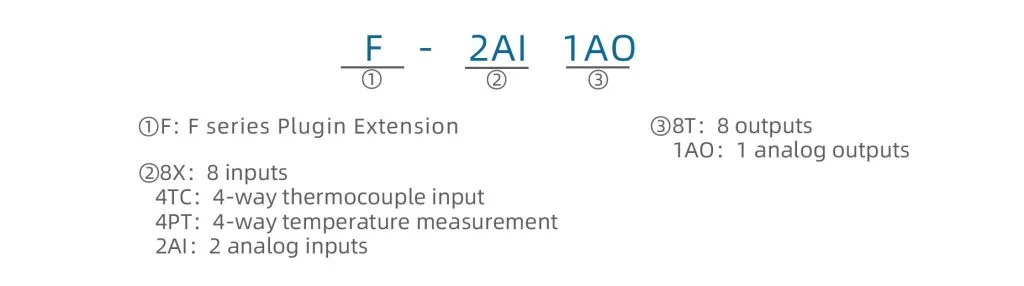

Samkoon F-2AI1AO
Digital inputs: None · Digital outputs: None · Analogue inputs: 2 · Analogue outputs: 1
Samkoon F-2AI1AO belongs to the F modules for analogue and digital signal expansion duties range. Its channel function, signal type, host compatibility and physical integration are separated for module selection.
Digital inputsNone
Digital outputsNone
Analogue inputs2
Analogue outputs1
Four points that define this configuration
Each point is tied to published model data or an explicit engineering verification step.
Signal architecture
Analogue inputs: 2 · Analogue outputs: 1 · Pulse: None
Host integration
Confirm the host series, bus method and power arrangement before final selection.
Panel placement
Dimensions: 39 × 46 × 33 mm · Protection: IP30 · Temperature: -20 °C – 55 °C (non-freezing)
System architecture
Treat the module as part of the complete signal chain
A correct module choice links the host controller, channel function, field wiring and panel conditions.
Host deviceCompatible controller series and hardware revision
Module channelsDigital inputs: None · Digital outputs: None · Analogue inputs: 2 · Analogue outputs: 1
Field connectionDimensions: 39 × 46 × 33 mm
Examine the product from every side

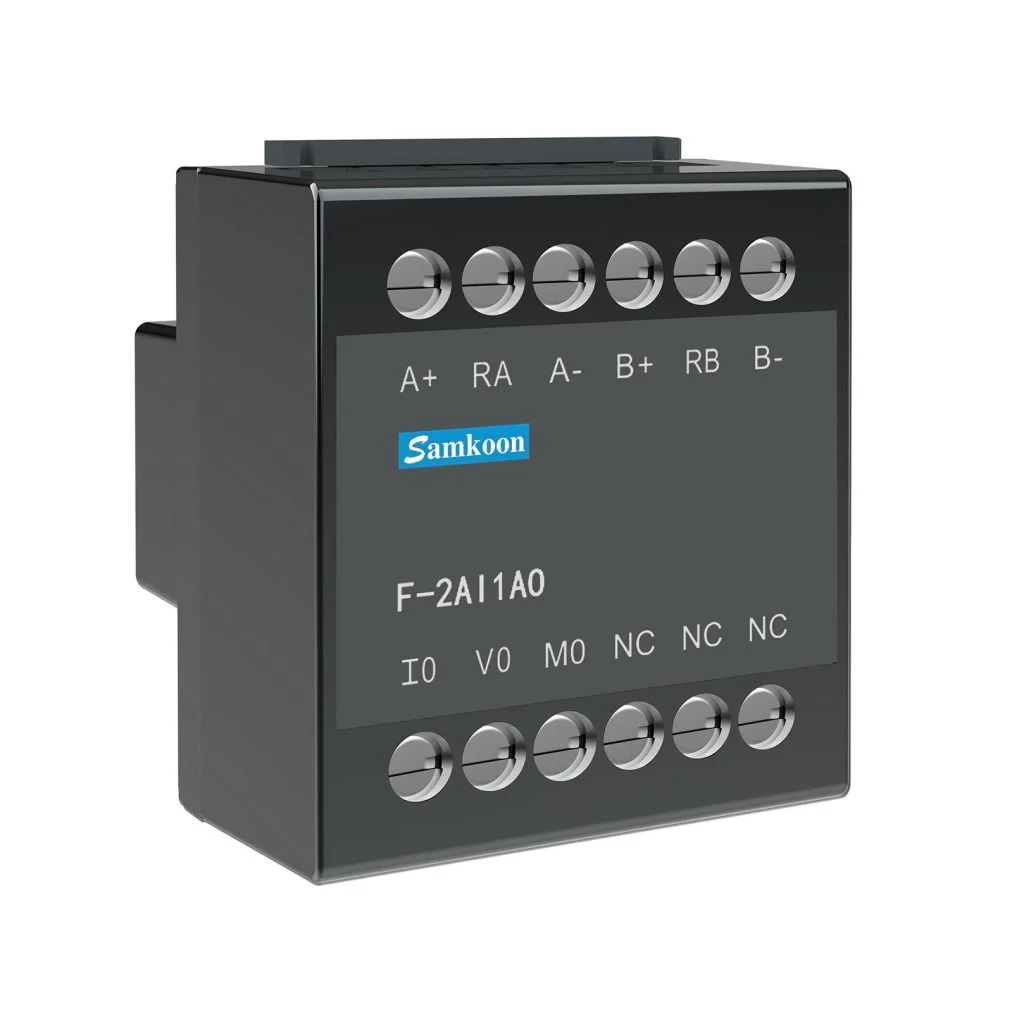

Review the front panel, rear I/O and connector layout before planning the enclosure.
Dimensions and mounting reference

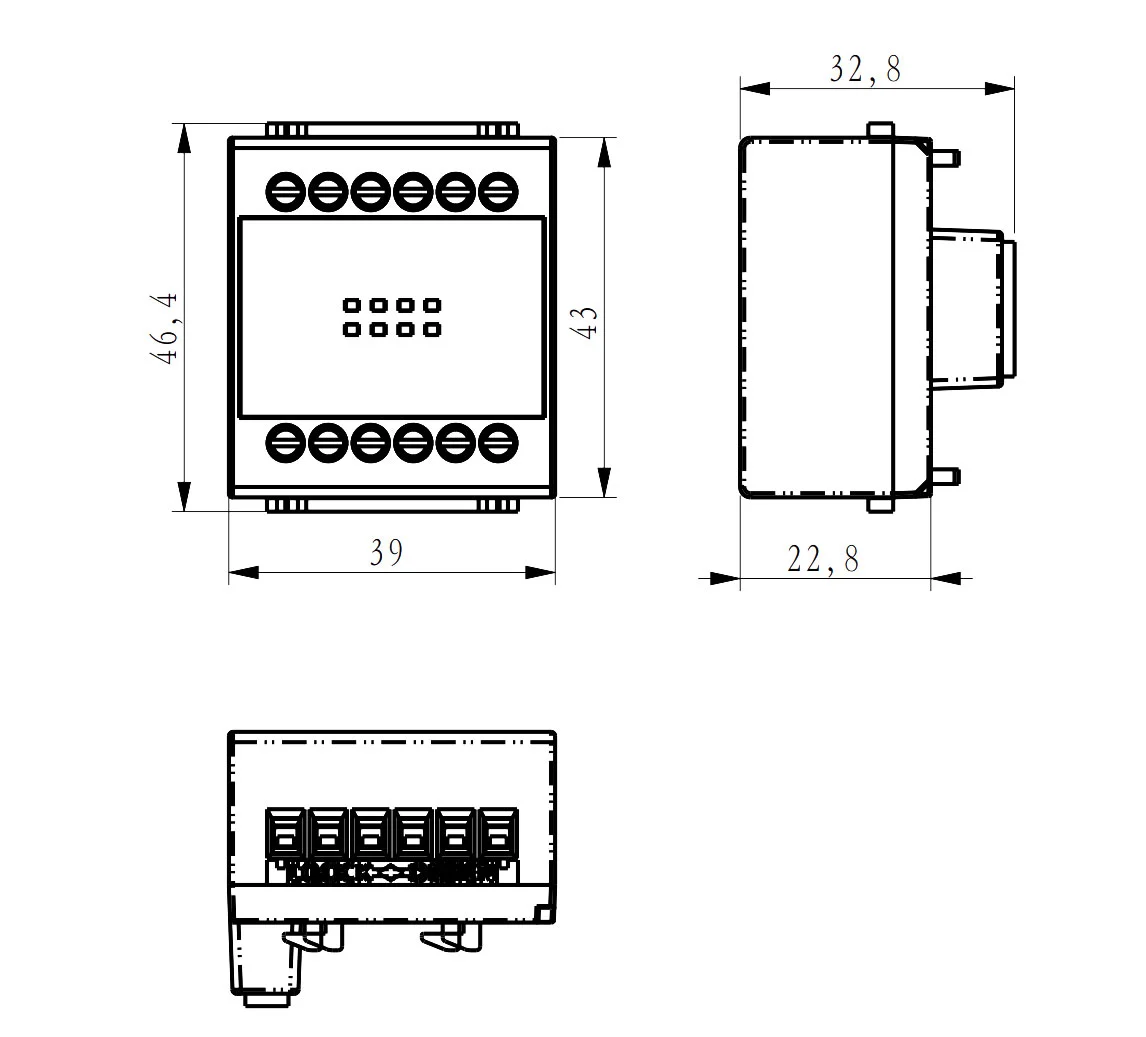

Use the official drawing to plan enclosure space, mounting orientation and service access.
Specifications arranged for engineering review
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
Mechanical construction
| Outer dimensions | 39 × 46 × 33 mm |
|---|---|
| Weight | 38 g |
| Maximum resolution | 0–5 V: 1.25 mV;0–10 V: 2.5 mV;4–20 mA: 5uA |
| D/A resolution | 16 bit |
System and certification
| Protection rating | IP30 |
|---|---|
| FCC | FCC Class A compliant |
| CE | EN 55032 and EN 55035 compliant |
Signal and channel structure
| Analogue inputs | 2 |
|---|---|
| Analogue outputs | 1 |
| Measurement range | 0–5 V,0–10 V,4–20 mA |
| Overall measurement accuracy | ±0.1% |
| Output range | 0–5 V,0–10 V,4–20 mA |
| Output accuracy | ±0.5% |
| Digital inputs | None |
| Digital outputs | None |
| High-speed counters | None |
| Pulse outputs | None |
Environment and software
| Operating temperature | -20 °C – 55 °C (non-freezing) |
|---|---|
| Programming software | SKTOOL7.1 |
| Operating humidity | 5–95% RH (non-condensing) |
Other technical details
| Model | F-2AI1AO |
|---|
Where this configuration can be evaluated
These are engineering fit scenarios; final approval depends on project-specific electrical, mechanical and safety checks.
Additional digital I/O
Projects where the published input or output structure matches the controller and field voltage.
Analogue measurement and control
Signal chains whose current or voltage mode, range and resolution are verified end to end.
Panel expansion
Control panels whose host compatibility, terminal access and future channel plan are documented together.
OEM configuration standardisation
Repeated machine panels that document the host revision, module code and field wiring as one approved set.
