Display and mechanical
| Outer dimensions | 39 × 46 × 33 mm |
|---|---|
| Weight | 38 g |
| Maximum resolution | 0–5 V: 1.25mV;0–10 V: 2.5mV;4–20mA: 5uA |
Samkoon Modules

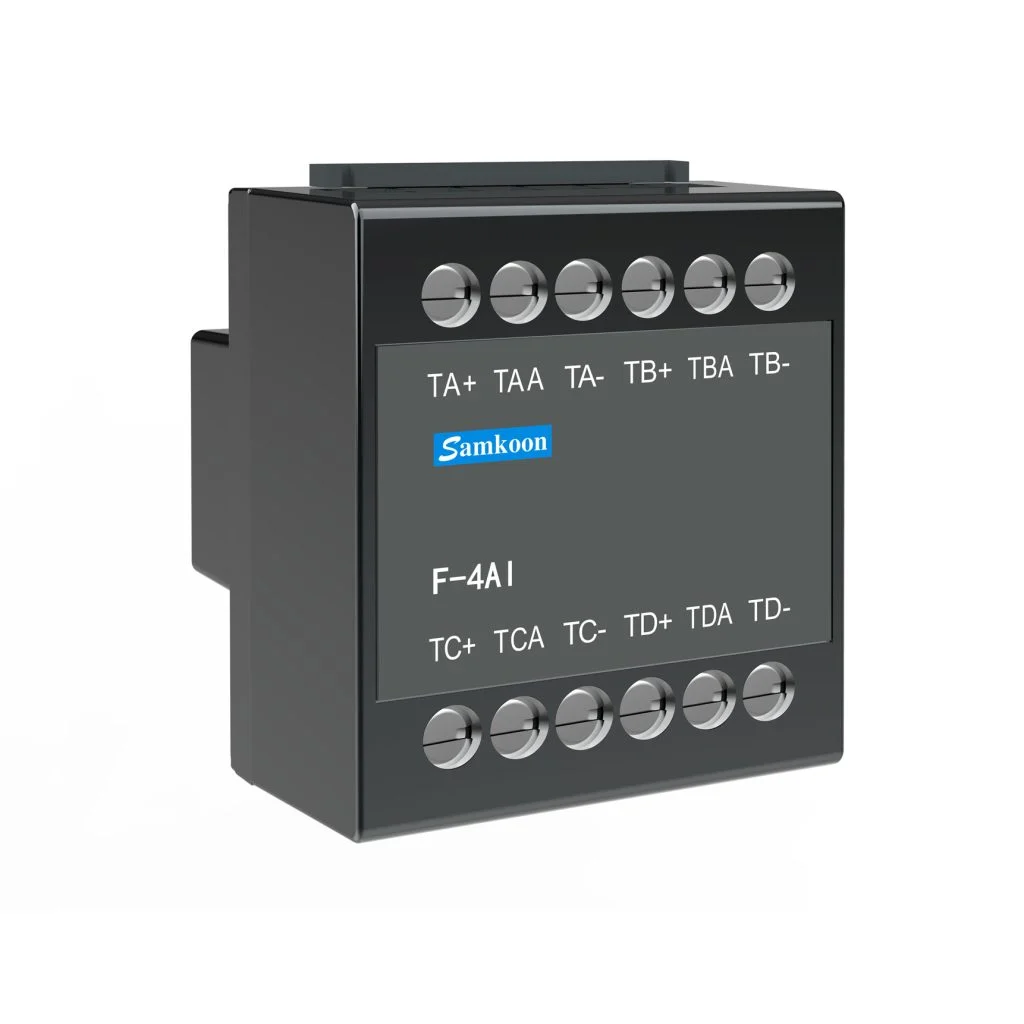

Samkoon F-4AI
F-4AI · 39 × 46 × 33 mm · 4
The official technical data for Samkoon F-4AI is grouped below to support compatibility and project selection.
Digital inputsNone
Digital outputsNone
Analogue inputs4
ModelF-4AI
Outer dimensions39 × 46 × 33 mm
Protection ratingIP30
Examine the product from every side
Review the front panel, rear I/O and connector layout before planning the enclosure.
Dimensions and panel cut-out
Use the official drawing together with the nominal catalogue values when planning panel machining and terminal access.
Specifications arranged for engineering review
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
System and certification
| Protection rating | IP30 |
|---|---|
| FCC | compliant: FCC，Class A |
| CE | EN 55032 and EN 55035 compliant |
I/O and control
| Analogue inputs | 4 |
|---|---|
| Measurement range | 0–5 V,0–10 V,4–20mA |
| Overall measurement accuracy | ±0.1% |
| Digital inputs | None |
| Digital outputs | None |
| High-speed counters | None |
| Pulse outputs | None |
Environment and software
| Operating temperature | -20°C–55°C(non-freezing) |
|---|---|
| Programming software | SKTOOL7.1 |
| Operating humidity | 5–95%RH(non-condensing) |
Other technical details
| Model | F-4AI |
|---|
