Display and mechanical
| Outer dimensions | 30 × 97 × 72 mm |
|---|---|
| Weight | 109 g |
Samkoon PLC
Samkoon S-16T
16
Samkoon S-16T is a PLC platform for machine-control projects; its I/O, high-speed functions, communications and expansion data are grouped for engineering selection.
Digital outputs16
Programming softwareSamSoar2022
Outer dimensions30 × 97 × 72 mm
Power supplyDC 24 V±20%
CANNone
Pulse output4 channelseach max. 200 KHz

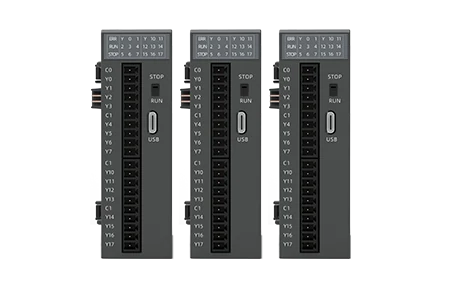

Examine the product from every side
Review the front panel, rear I/O and connector layout before planning the enclosure.
Dimensions and panel cut-out
Use the official drawing together with the nominal catalogue values when planning panel machining and terminal access.
Specifications arranged for engineering review
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
System and certification
| Protection rating | IP30 |
|---|---|
| Left-side expansion interface | Yes |
| FCC | compliant: FCC，Class A |
| CE | EN 55032 and EN 55035 compliant |
I/O and control
| Digital outputs | 16 |
|---|---|
| Pulse output | 4 channelseach max. 200 KHz |
| Output type | Transistor / NPN |
| Pulse outputs | 4 Channels, Maximum 200KHz Each |
Communication and power
| Power supply | DC 24 V±20% |
|---|---|
| CAN | None |
Environment and software
| Operating temperature | -20°C–55°C(non-freezing) |
|---|---|
| Programming software | SamSoar2022 |
| Operating humidity | 5–95%RH(non-condensing) |
Other technical details
| RS485 | 1 |
|---|
Nearby models in the same series
Compare published technical values and the complete model code before selection.
Official product records
Current product-centre record — Listed in Samkoon's current .cn product centre.
