Control core
Software: SamSoar2022
Samkoon PLC

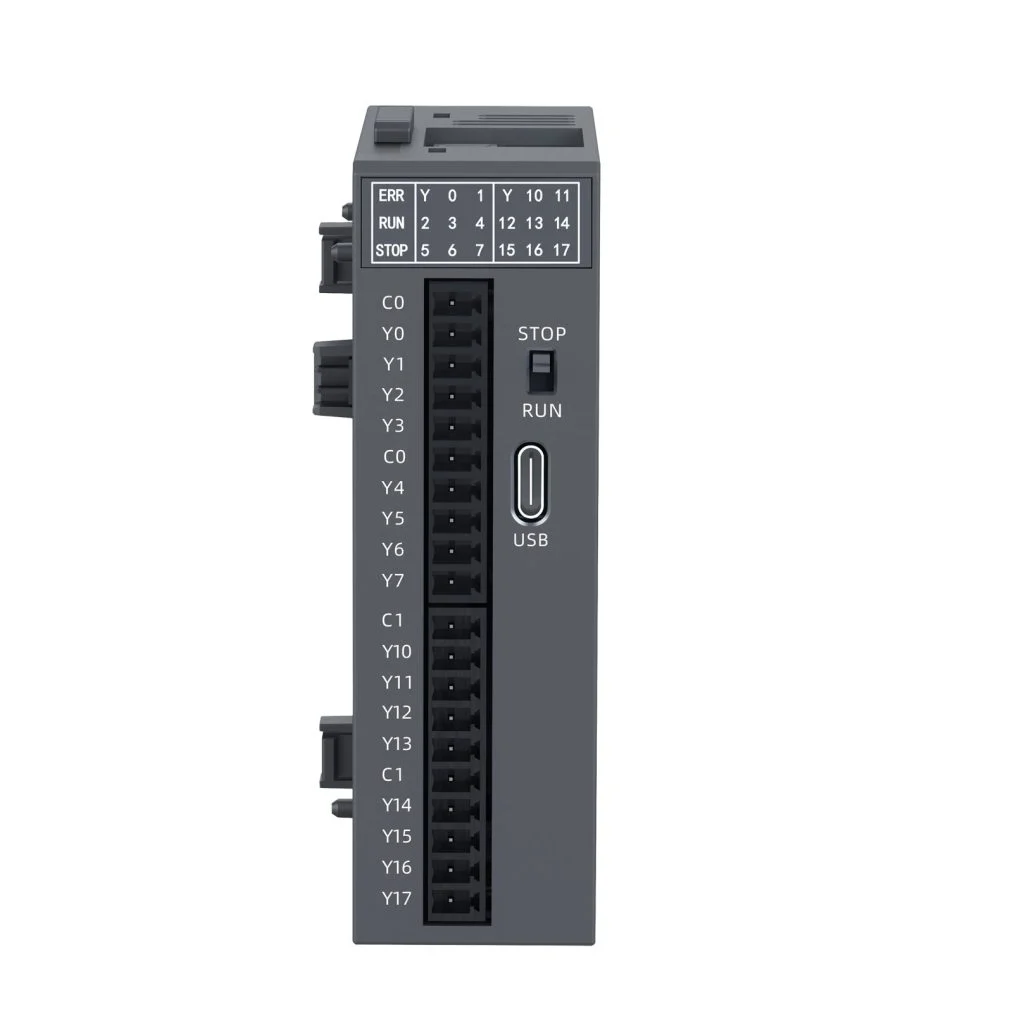

Samkoon S-E16T
Output: 16
Samkoon S-E16T is part of the digital, analogue and special-function modules for the S-series PLC architecture portfolio. Its control core, field I/O, high-speed functions and communications are organised as an engineering architecture rather than a flat data list.
Digital outputs16
Programming softwareSamSoar2022
Outer dimensions30 × 97 × 72 mm
Power supplyDC 24 V ±20%
CANNone
Protection ratingIP30
Four points that define this configuration
Each point is tied to published model data or an explicit engineering verification step.
Local field I/O
Confirm channel count, output type and load class from the exact model suffix.
High-speed and motion functions
Verify counter, pulse and motion-network capacity against the machine cycle.
Network and expansion
Serial: 1 · CAN: None
System architecture
Read the PLC as a three-layer control system
Evaluate processing, local I/O and motion/network functions together before final model approval.
Controller coreSoftware: SamSoar2022
Local I/OInput channels, output technology and electrical loads
Motion, network and expansionHigh-speed functions, communications and future modules
Examine the product from every side
Review the front panel, rear I/O and connector layout before planning the enclosure.
Dimensions and mounting reference
Use the official drawing to plan enclosure space, mounting orientation and service access.
Specifications arranged for engineering review
All source-qualified values are visible by topic; no decision-critical data is hidden behind an expandable panel.
Mechanical construction
| Outer dimensions | 30 × 97 × 72 mm |
|---|---|
| Weight | 109 g |
System and certification
| Protection rating | IP30 |
|---|---|
| FCC | FCC Class A compliant |
| CE | EN 55032 and EN 55035 compliant |
I/O and control
| Digital outputs | 16 |
|---|---|
| Output type | Transistor / NPN |
Communication and power
| Power supply | DC 24 V ±20% |
|---|---|
| CAN | None |
| USB | Upload and online monitoring |
Environment and software
| Operating temperature | -20 °C – 55 °C (non-freezing) |
|---|---|
| Programming software | SamSoar2022 |
| Operating humidity | 5–95% RH (non-condensing) |
Other technical details
| RS485 | 1 |
|---|
Where this configuration can be evaluated
These are engineering fit scenarios; final approval depends on project-specific electrical, mechanical and safety checks.
Machine sequence control
Discrete-control projects whose program and I/O requirements fit the selected CPU and channel structure.
Fast counting and pulse tasks
Applications validated against the exact model's published counter and pulse limits.
Networked automation cells
Controller architectures whose Ethernet, serial, CAN or EtherCAT needs match the available interfaces.
Expandable OEM panels
Panels in which local and future expansion I/O are planned as one bill of materials.
Official product and catalogue records
Use these manufacturer records to confirm model identity, lifecycle and the current document revision.
Compare nearby configurations with named technical fields
Only published values are compared; a dash means that the current source does not state the field.
Answers needed before model approval
Answers use published values where available and identify the checks that still require the current official record.
What is the local I/O structure?
No structured I/O value is available in the current source; confirm it by the complete model code.
Which high-speed functions are published?
Confirm high-speed functions against the current manual and CPU revision.
Which networks are available?
Serial: 1 · CAN: None
Which programming software is used?
SamSoar2022
Official product records
Current product-centre record — Listed in Samkoon's current .cn product centre.
Technical sources
Official sources checked on 24 August 2026. Samkoon current product centre · Exact-model English product record
