The measurement type supports TD, TC, RTD
Solidot · Temperature Module
XB6-A40TM
Sliced I/O, high speed X-bus , 4ch AI, RTD&TC type(Resistance Temperature Detector &Thermocouple), 106*73*25.7mm, space saving, smart, fast wiring, RTB(Removable Terminal Block), IP20.
Temperature Module
Max. Number of IO Modules32
Analog Inputs4
Power SupplyPower supply via X-Bus
What defines this model
Review the published differences attached to this exact model code rather than only the general family.
Supports single-channel filter settings
Supports single-channel enable settings
All temperature sensors support disconnection detection
Place in the system architecture
Treat network, product and field layers as one validation flow.
Control network and backplane bus
Digital, analogue, temperature and special-function channels
Power, wiring and field-device matching
Technical parameters
Values come from Solidot's current official model record and must be reconfirmed for the product revision.
Interface Parameters
| Max. Number of IO Modules | 32 |
|---|---|
| Data Transfer Medium | X-Bus backplane bus |
| Data Transfer Rates | 6Mb/s |
| Electrical Isolation | N/A |
Technical Parameters
| Current Consumption | 80mA |
|---|---|
| Operating Temperature | -10~60℃ |
| Power Supply | Power supply via X-Bus |
| Relative Humidity | 95 %, no condensation |
| Storage Temperature | -20~75℃ |
| Protect. Class | IP20 |
| Module Size | 106*73*25.7 mm |
| Weight | 120g |
Analog
| Conversion Time | 201 ms (thermocouple) / 26 ms (RTD、resistor) |
|---|---|
| Electrical Isolation | 500Vrms, no isolation between channels |
| Analog Inputs | 4 |
| Resolution | 16 bit |
| Accurate | ±0.5% (thermocouple)/ ±1℃ (RTD) / ±0.1% (resistor) |
| Indicator | Green LED |

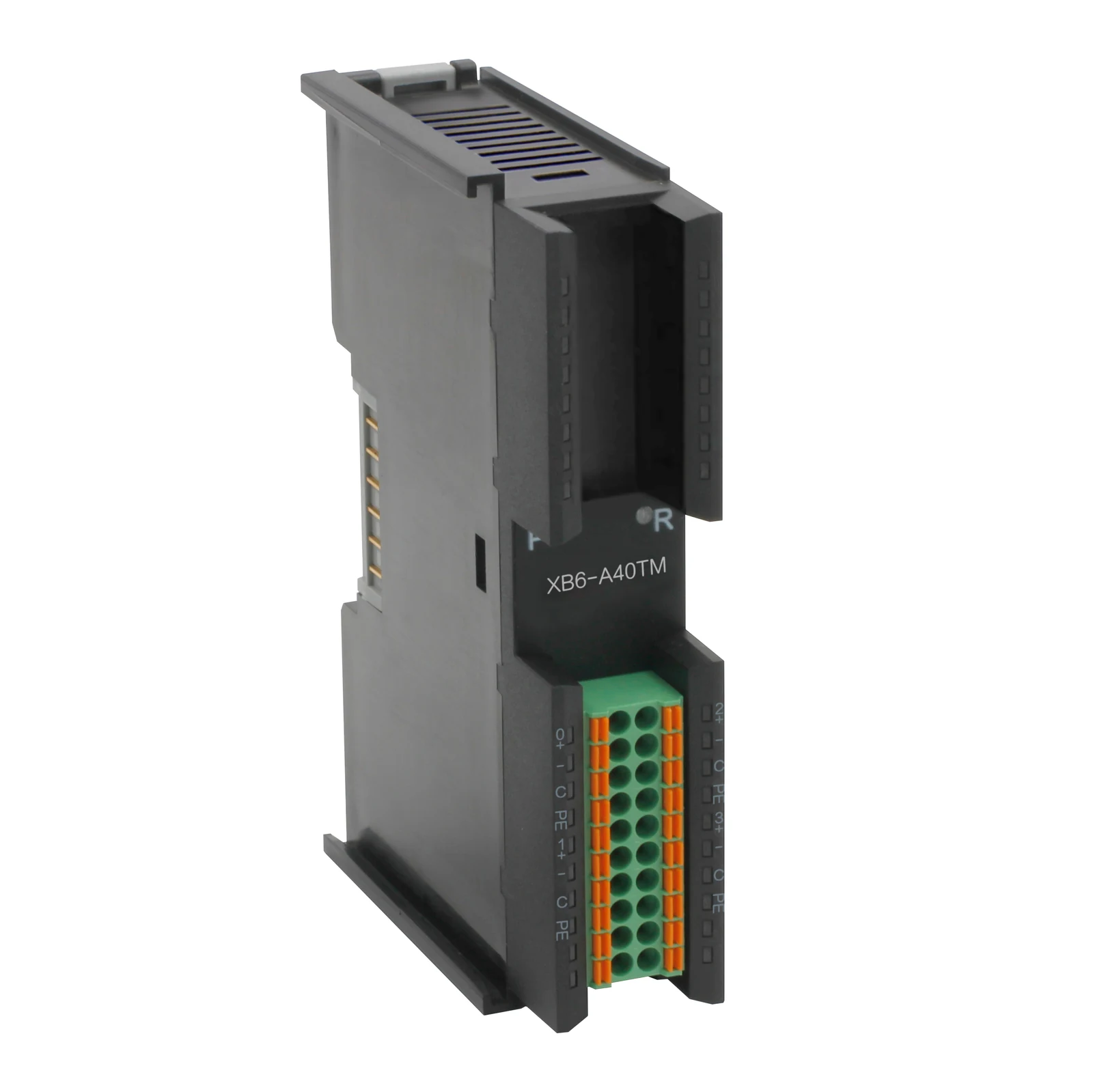

Product images
Images are official source records for the same model.
Official files
Only links published by the manufacturer for this model are listed.
Frequently asked questions
Core checks before selection and commissioning.
Which industrial network does XB6-A40TM support?
Network support must be confirmed from the exact model code and current official documentation.
What are the principal published specifications?
Max. Number of IO Modules: 32; Analog Inputs: 4; Power Supply: Power supply via X-Bus; Protect. Class: IP20
How should this model be selected?
Evaluate network, channel function, power, environment, wiring and mechanical placement as one configuration. ProControl can verify the final bill of materials.
